BowLift | Signal Receiver Wireless Remote Control Switch Relay

About Learning and Clearing Method:

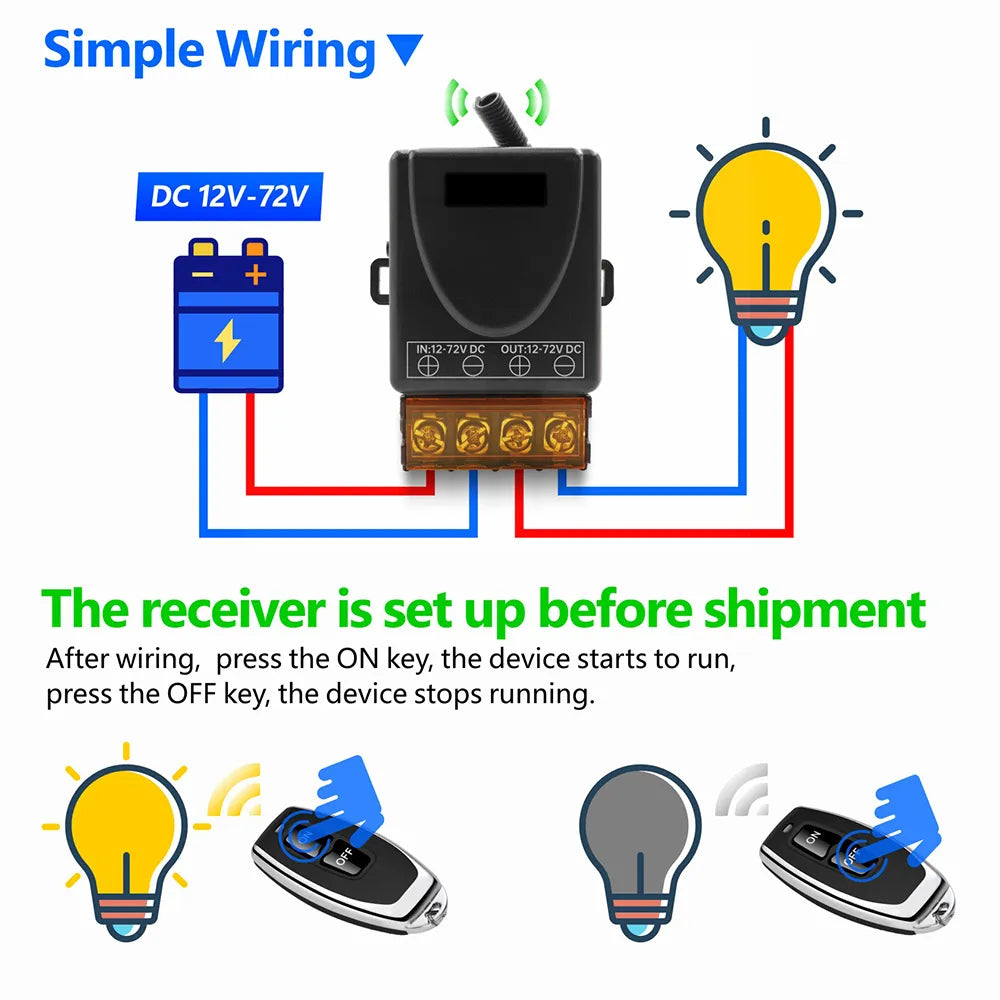

Apply 12V to the Receiver,
Momentary: press the Learning Button once. the Led indicator blinks once, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.
Toggle: press the Learning Button twice. the Led indicator blinks twice, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.
Latched: press the Learning Button three times. the Led indicator blinks three times, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.
Delay time (5S): press the Learning Button four times. the Led indicator blinks four times, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.
Delay time (10S): press the Learning Button five times. the Led indicator blinks five times, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.
Delay time (15S): press the Learning Button six times. the Led indicator blinks six times, then press the transmitter, and the Led indicator blinks three times, indicating successful learning.

Clearing: Hold down the Learning button for 8 seconds. When the receiver Led indicator blinks three times and then goes OFF, it signifies that the code has been cleared.

SPECIFICATIONS

About Receiver:

1. Operating voltage: DC12V-72V
2. Standby current: Less than 8mA
3. Operating temperature: -40 Degrees to +80 Degrees
4. Receiver sensitivity: greater than -105dBm
5. Working frequency: 433MHz
6. Output voltage: Input=output
8. Maximum load current: 30A

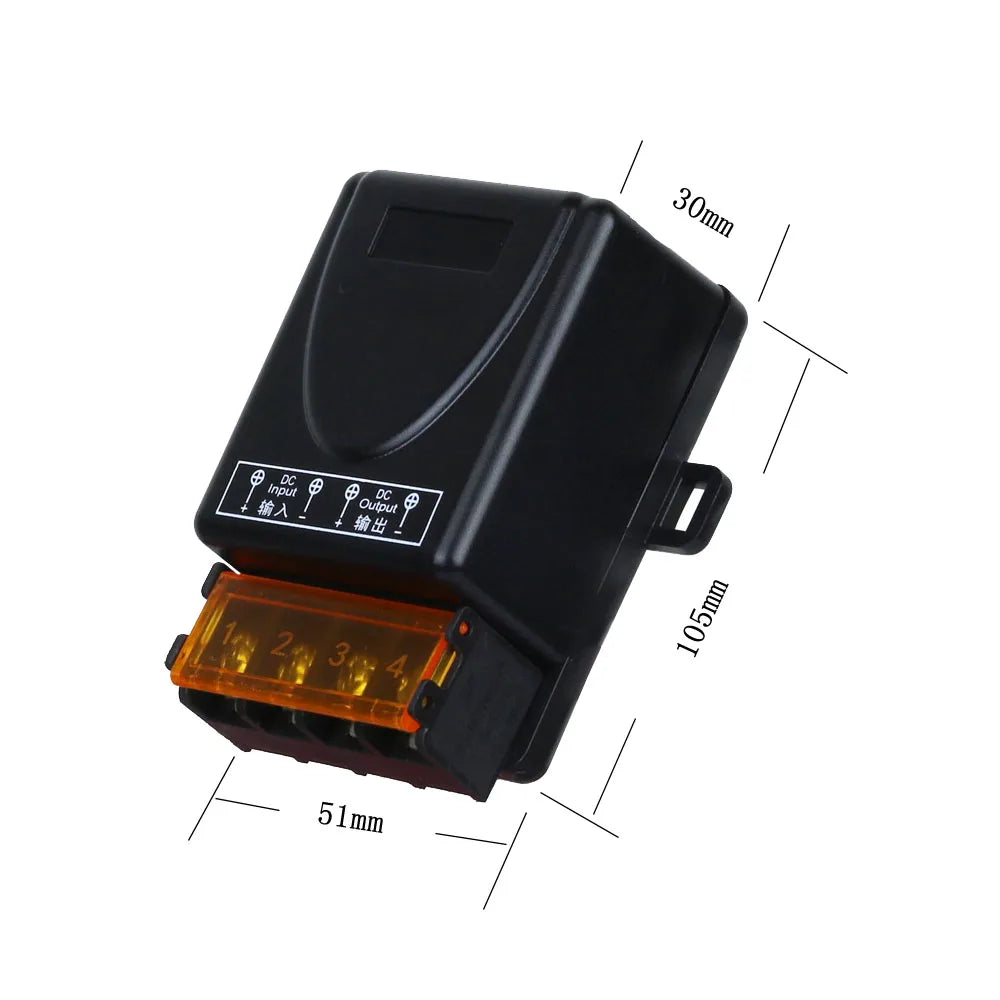

9. Dimensions: 105 x 51 x 30mm
About Operating Mode:

Momentary: Relay: Press and hold -> On; Release -> Off.
Toggle: Relay: Press -> On; Press the same button again -> Off.
Latched: Relay: Press -> On; Press a different button -> Off.
Delay time :
Press the remote control button, the corresponding relay activates and remains functional until the time limit is reached.

Usage: Universal

Usage: Lighting

Usage: Electric Door

Usage: SWITCH

Wireless Technology: RF

App Support: No

Certification: CE

Certification: FCC

Certification: PSE

Frequency: 433 MHz

Contents of the Box:

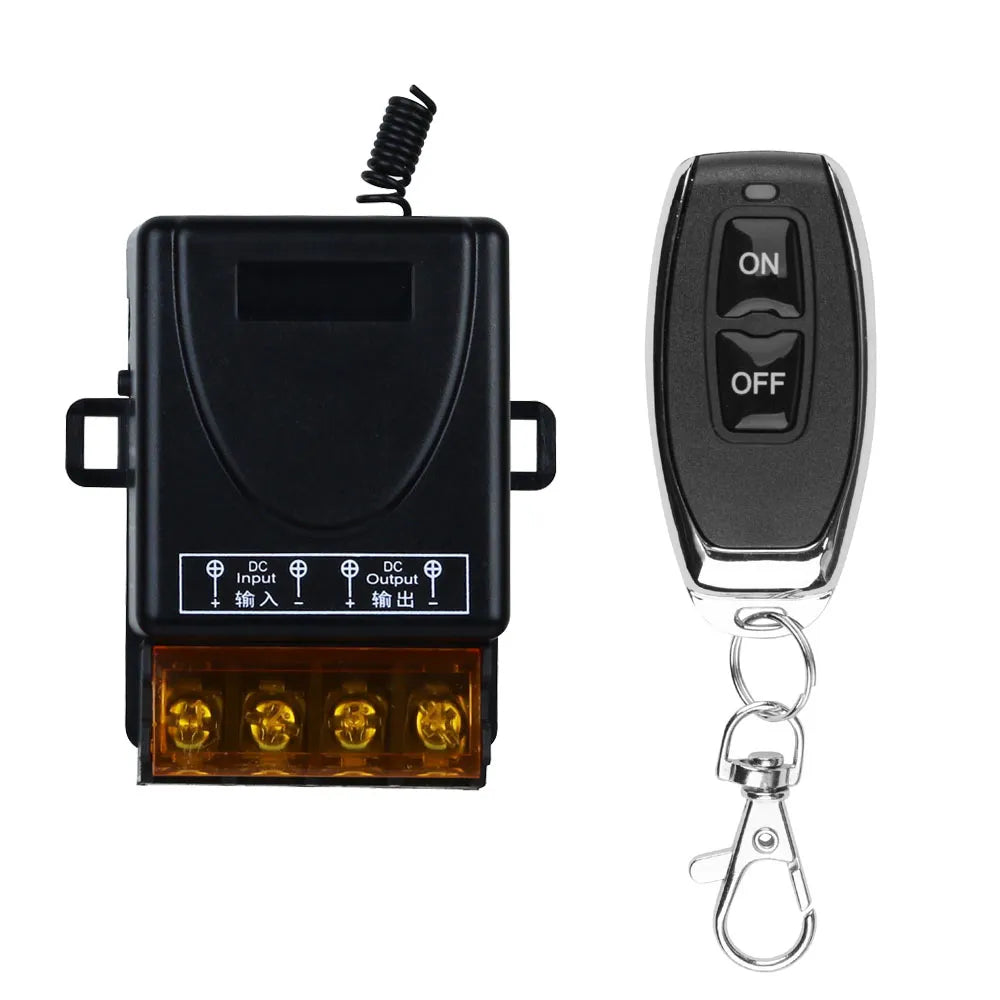

1 x Signal Receiver Wireless Remote Control Switch Relay
