BowLift | UltraTrack Magnetic GPS Tracker | 5-10m GNSS Positioning Accuracy | Dual-Mode GPS/LBS Telemetry | 500mAh Lithium Battery | Remote Audio Monitoring Module

Micro-Format GNSS Asset Tracker with Integrated Magnetic Mounting

The BowLift UltraTrack is a high-sensitivity telemetry device engineered for real-time asset geolocation and security monitoring. Measuring 35x20x14mm and weighing 50 grams, the unit utilizes a high-gain passive antenna and a multi-constellation receiver to achieve a positioning accuracy of 5-10 meters.

Technical Hardware & Sensor Specifications

• Dual-Mode Positioning Logic: Synchronizes GPS and LBS (Location Based Services) protocols to maintain connectivity in diverse signal environments, including urban canyons and remote areas.

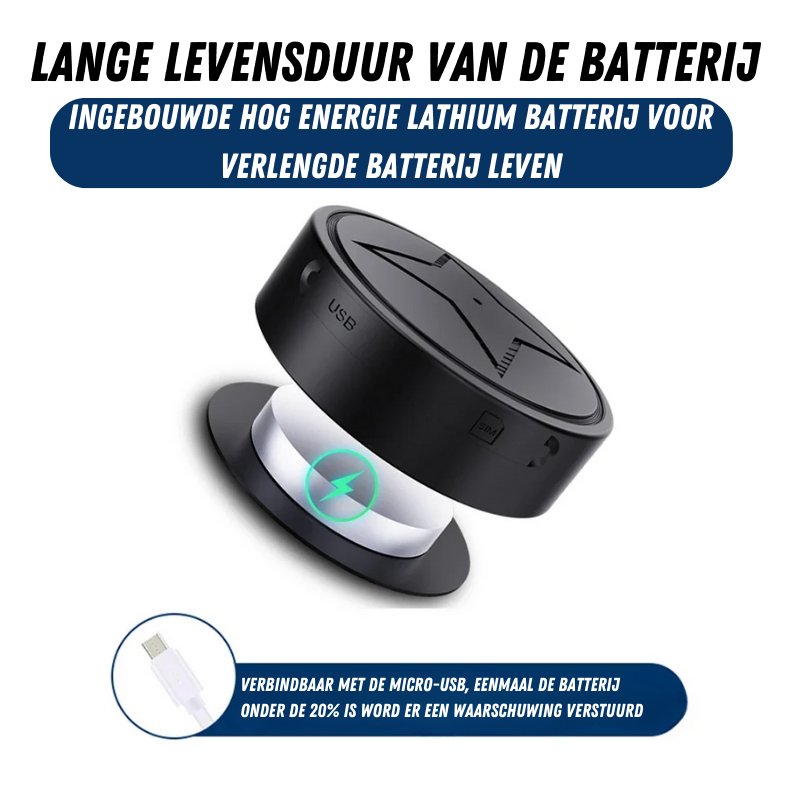

• Automated Power Management: Powered by an internal 500mAh lithium battery (3.7-4.2V). The system is programmed to transmit an automated low-battery telemetry alert when the charge threshold drops below 20%.
• Multi-Sensor Alarm Array: Features integrated sensors for vibration detection, speed limit exceeding, displacement alerts, and power failure notifications for comprehensive asset protection.
• Environmental Resilience: The internal circuitry is calibrated for stable operation within an industrial temperature range of -20°C to 70°C.
• Telemetry & Cloud Integration: Supports real-time data uploading to cloud servers, providing accessible location history and remote audio monitoring via an English-language application interface.

Technical Product Specifications:

• Dimensions: 35 mm x 20 mm x 14 mm
• Mass: 50 Grams
• Positioning Accuracy: 5-10 Meters
• Communication: GPS / LBS Dual-Mode
• Battery: 500mAh Lithium-Ion (3.7-4.2V)
• Mounting: High-Strength Integrated Rare-Earth Magnet
• Audio: Integrated Microphone for Remote Monitoring

Hardware Inventory:

• 1 x BowLift UltraTrack GPS Tracker
• 1 x High-Conductivity Charging Cable
• 1 x Technical Configuration & User Manual
